Belparts excavator travel motor assy for hitachi ZX470-5G final drive assy 9298565 9251680 9263595
Product description
| Appliion | Excavator |
| Part name | Travel motor ass'y |
| Material | Steel |
| Model | ZX470-5G |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T, paypal, trade assurance or as required |
| Part number | 9251680 9263595 9298565 |
| Shipment | by sea, by air, by express or as required |

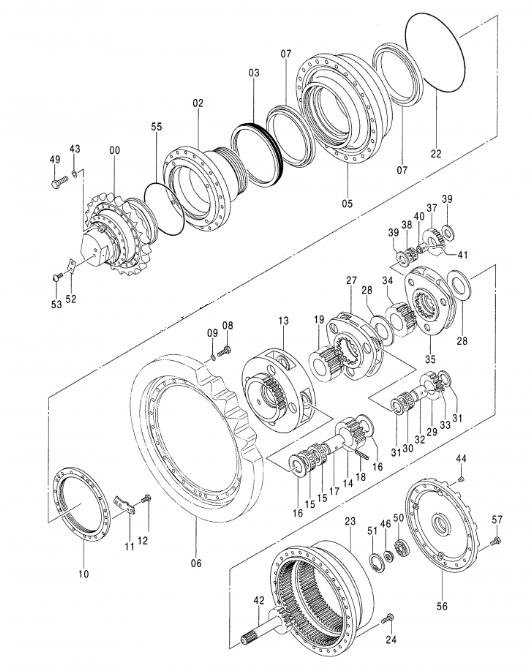

| # | Part No | Part Name | Qty. | Price request |
| | 9251680 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | |
| | 9263595 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | |
| 00 | 4637796 | . MOTOR; OIL | 1 | |
| 02 | 1027942 | . HOUSING | 1 | |
| 03 | 4344155 | . SEAL; GROUP | 1 | |
| 05 | 1015882 | . DRUM | 1 | |
| 06 | 1010956 | . SPROCKET | 1 | |
| 07 | 4200411 | . BRG.; ROL. | 2 | |
| 08 | J932270 | . BOLT | 24 | |
| 09 | A590922 | . WASHER; SPRING | 24 | |
| 10 | 3043140 | . NUT | 1 | |
| 11 | 3043141 | . PLATE; LOCK | 1 | |
| 12 | J901225 | . BOLT | 2 | |
| 13 | 1015883 | . CARRIER | 1 | |
| 14 | 3053195 | . GEAR; PLANETARY | 4 | |
| 15 | 4452484 | . BRG.; NEEDLE | 8 | |
| 16 | 4219595 | . PLATE; THRUST | 8 | |
| 17 | 4263903 | . PIN | 4 | |
| 18 | 4207947 | . PIN; SPRING | 4 | |
| 19 | 3053786 | . GEAR; SUN | 1 | |
| 22 | 4203187 | . O-RING | 1 | |
| 23 | 1018360 | . GEAR; RING | 1 | |
| 24 | J931845 | . BOLT | 30 | |
| 27 | 1015523 | . CARRIER | 1 | |
| 28 | 4263905 | . SPACER | 2 | |
| 29 | 3053194 | . GEAR; PLANETARY | 3 | |
| 30 | 4452483 | . BRG.; NEEDLE | 3 | |
| 31 | 4201968 | . PLATE; THRUST | 6 | |
| 32 | 4263902 | . PIN | 3 | |
| 33 | 4203180 | . PIN; SPRING | 3 | |
| 34 | 3053785 | . GEAR; SUN | 1 | |
| 35 | 1015505 | . CARRIER | 1 | |
| 37 | 3053098 | . GEAR; PLANETARY | 3 | |
| 38 | 4452480 | . BRG.; NEEDLE | 3 | |
| 39 | 4269295 | . PLATE; THRUST | 6 | |
| 40 | 4263901 | . PIN | 3 | |
| 41 | 4222030 | . PIN; SPRING | 3 | |
| 42 | 2044685 | . SHAFT; PROP. | 1 | |
| 43 | A590918 | . WASHER; SPRING | 4 | |
| 44 | 4279343 | . PLUG | 3 | |
| 46 | 4288767 | . PIN; STOPPER | 1 | |
| 49 | J911860 | . BOLT | 4 | |
| 50 | 4274541 | . BRG.; BALL | 1 | |
| 51 | 991725 | . RING; RETAINING | 1 | |
| 52 | | . NAME-PLATE | 1 | |
| 53 | M492564 | . SCREW; DRIVE | 2 | |
| 55 | 4271596 | . O-RING | 1 | |
| 56 | 1023348 | . COVER | 1 | |
| 57 | 4373463 | . BOLT; SHOE | 16 | |
